Case Studies - Industrial / Commercial Sectors

We are proud to have been involved in major and prestigious projects. Please click on the links provided for more details and images.

P.N. Tools

P.N. Tools, Carlyon Road, Atherstone

Industrial roofing project - overclad of the existing asbestos cement roof. Read more
PN Tools 2
MacDonald Road Church

A major re-roofing project for MacDonald Road Methodist Church. Read more
MacDonald Rd

Birmingham Childrens Hospital

This was a major re-roofing project with various materials including 1500sqm of torch-on-felt and 2000sqm of Westmoreland Random slate to be stripped, resarked and reslated with new Westmoreland Random slate from the Elterwater quarry in the Lake District. ... read more


bch6
bch lift
Banbury Railway Station

We applied 3500sqm of 25 year guarantee, high performance ventilated torch-on-felt roofing system, to the entire main line station roof, together with profile metal cladding, roof dome installations and drainage systems, (all to a continually fully operational station). We also supplied post contract cleaning services.


banbury2
banbury1
Pipers Lane (Coventry)

In addition to the initial installation of profile steel sheeting to external elements of the building, this project involved some 2000sqm of flat roofing, which was carried out by the mechanical fixing of PUR (rigid polyurethane), insulation board to an existing woodwool slab deck, onto which was applied FDT Rhepanol fk (polyisobutylene), single ply membrane.



pipers lane rhepanol
pipers lane rhepanol (3)


Bond House (Nuneaton Town Centre)

This project included the application of 500sqm of mechanically fixed rigid PUR (polyurethane insulation), onto which we applied Rhepanol fk (polyisobutylene), single ply membrane. In addition to the roof coverings, the parapets were re-designed to have installed a purpose made fabricated steel capping system, to ensure long term watertight integrity and eliminate the previous suspect brickwork arrangement.


bondhouse1
bondhouse3


Pheasant's Nest Farm (Warwickshire countryside)


This interesting project involved the renovation of a semi-derelict farm house, and its" outbuildings. The original wainey battens were carefully retained, in order to preserve the traditional look of the roof from the inside of the open plan living areas. The roof was then built up on the outside, with a system of rigid insulation and counter battening (devised by ACSAP), before the original reclaimed tiles were blended with make-up tiles and laid to produce the finish apparent in the photographs.


The aviary and other outbuildings were structurally braced, new purlins installed and the roof clad with Kingspan composite roof sheets.




phesants nest farm plain tiling
pnf
phesants nest farm heritage roofing plain tiling


Peugeot Motor Company (Ryton & Stoke Plants)

We provided continual reactive and proactive maintenance over a period of some 30 years, this included projects large and small, such as built-up felt roofing, Rhepanol single-ply membranes, steel re-roofing and overcladding, vertical cladding and facias , rubberised plygene gutterline systems and in the refurbishment of 22,000sqm of roof at the Stoke plant, to provide high grade warehousing of components for the Ryton plant. We also carried out large scale replacement of 2400sqm of Georgian Wired Northlight glazing with polycarbonate systems.



peugeot g
peugeot 6


Leamington Rehabilitation Hospital



leamington rehab hospital4


The Hinckley Island Hotel

As part of an extensive refurbishment of this prestigious site, ACSAP were pleased to carry out to the highest standards, amongst other things:





hinkleyislandhotel tiling (3)
hinkleyislandhotel tiling (2)
hinkleyislandhotel tiling


Netherton Furniture Warehouse (West-Midlands)

This project called for the mechanical removal of bitumen bonded granite chippings, from some 450sqm of existing roof. This was followed, by the installation of a ventilated 3-layer high performance torch-on felt system, together with the installation of rubberised plygene valley liners.



netherton 2
netherton pre torch on felting


Wooton Grange Barns

This project called for the renovation of barn roofs, which included the installation of Multifoil insulation and counter-battens, followed by the blending and relaying of reclaimed tiles with the originals to preserve the original aesthetics.





wooton grange barns reclaimed tiles2
wooton grange barns reclaimed tiles6


Henley-in-Arden College (Warwickshire)

This project involved a strip and re-slate in reclaimed Welsh slate of all external elevations. On the courtyard roofs ACSAP stripped and removed asbestos cement 'slates', and reslated with Eternit 'Thrutone" fibre cement slates. All flat roofs were re-roofed with the Rhepanol fk system.

All lead valleys, mop-stick lead hips and ridges, were replaced by our skilled tradesmen. The job was completed with the installation of powder coated cast aluminium rainwater goods.





henley in arden college welsh slate1
henley in arden college welsh slate2



Cobham Hotel (Surrey)

This new hotel development involved the installation of Marley Monarch (a polymer cement slate effect tile), and also included extensive flat roofing to the existing building.



cobham3

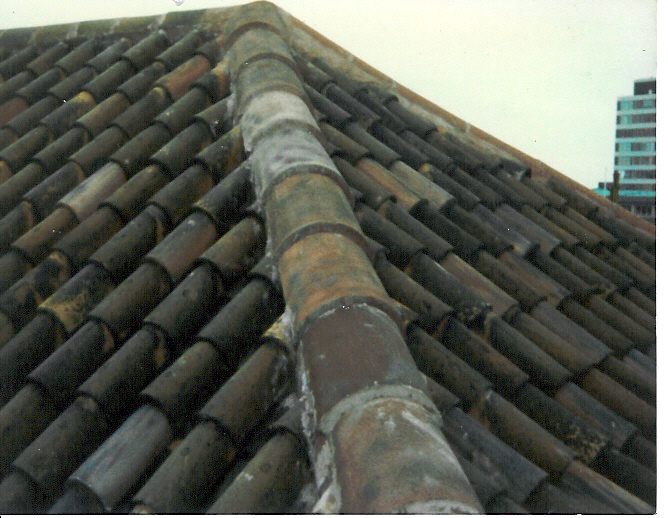

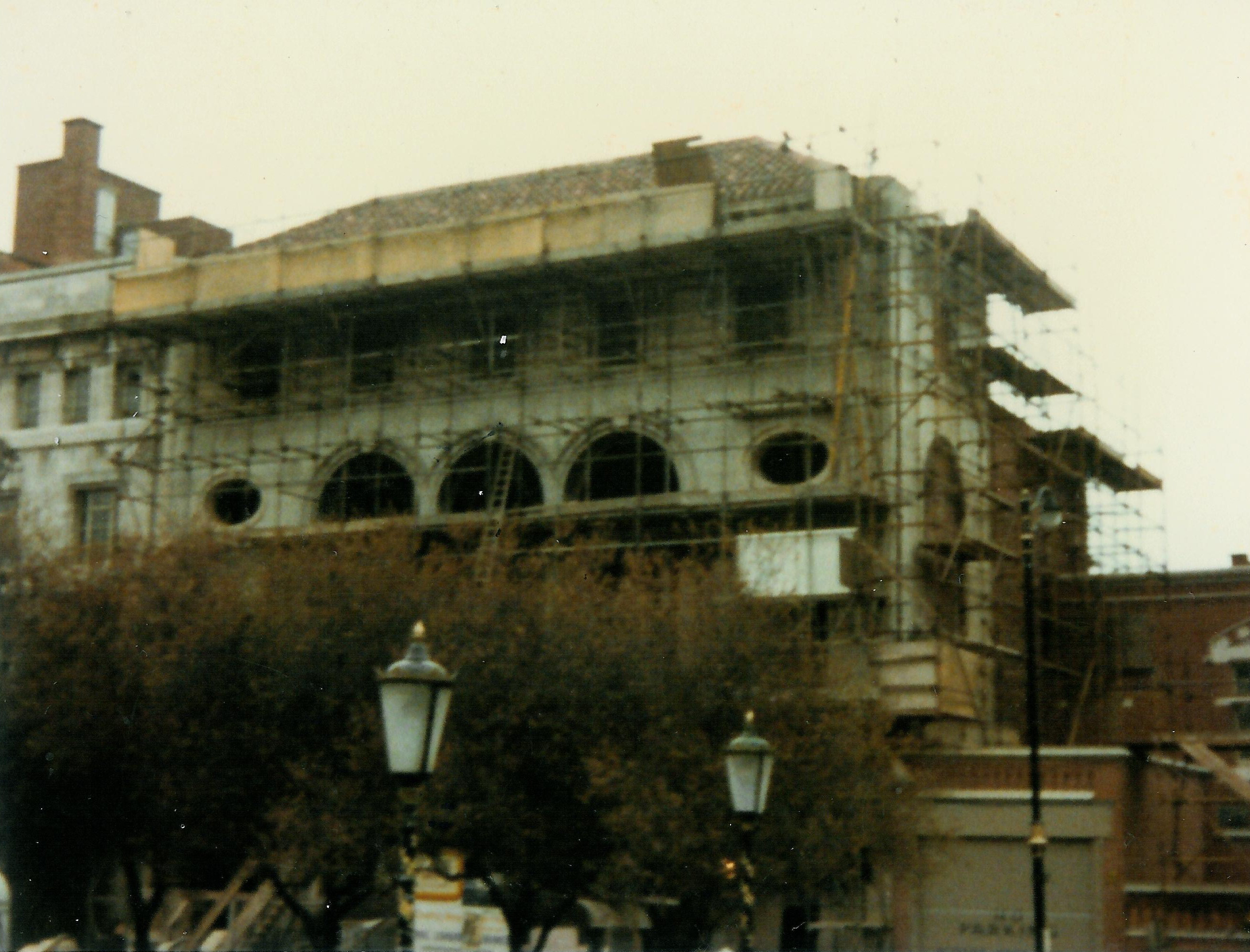

Granby Square Cinema (Leicester)



This project involved the reroofing of a listed 1920's Art Deco building in Bridgewater tiles. ACSAP were responsible for the commission of moulds to produce hip, and makeup tiles (all bedded in lime mortar), for this rare variety of tiling.


bridgewatertilesgranby2
bridgewatertilesgranby1


King's Cross Station (London)

ACSAP installed 2500sqm of new plywood decking onto the concourse flat roof onto which we torch applied a ventilated 3-layer high-performance felt system.

Interestingly, our programme of works was able to accommodate the very particular requirements of the Harry Potter film production team. And our roof was able to survive this experience too!

Picture by kind permission of The Daily Telegraph.

kingscross

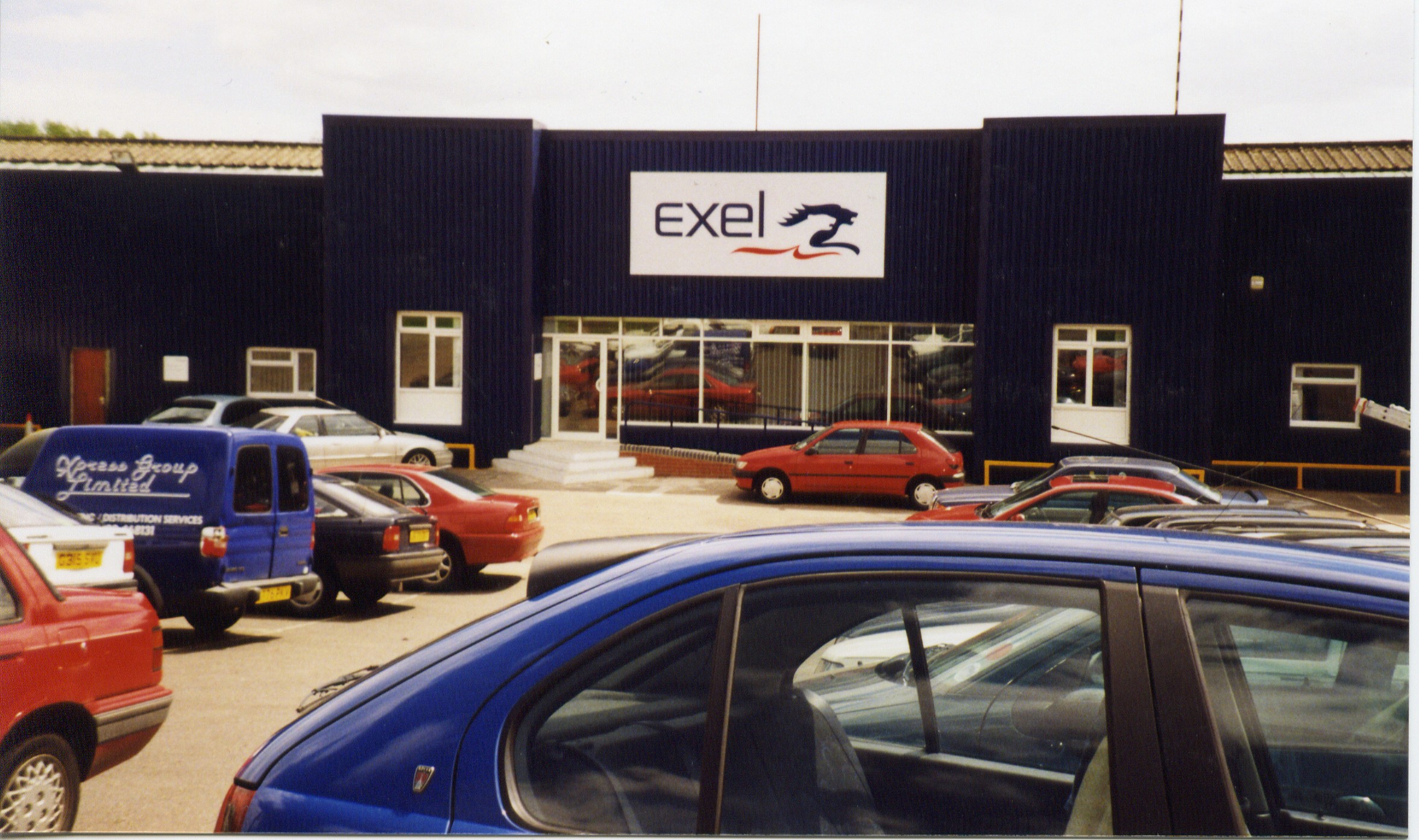

Exel Logistics (Coventry)

This project involved the installation of new cladding rails and profile sheeting to an existing rendered frontage of the office building, including all detail work around windows, doors, entrance foyer and mobility ramps. Also across the production area five 50m plygene valley liners were installed .
cladding1
cladding2

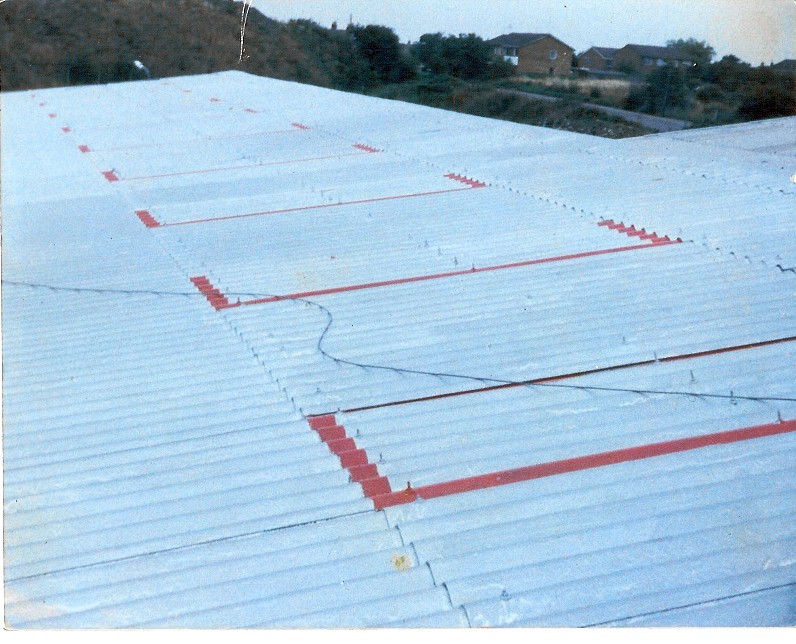

Vanderhoff Electronics (Nuneaton)

The roofs of this 1000sqm factory unit were first prepared by pressure washing the existing asbestos cement roofing, and subsequently applying urathane liquid coatings.
vanderhoff asbestos coating

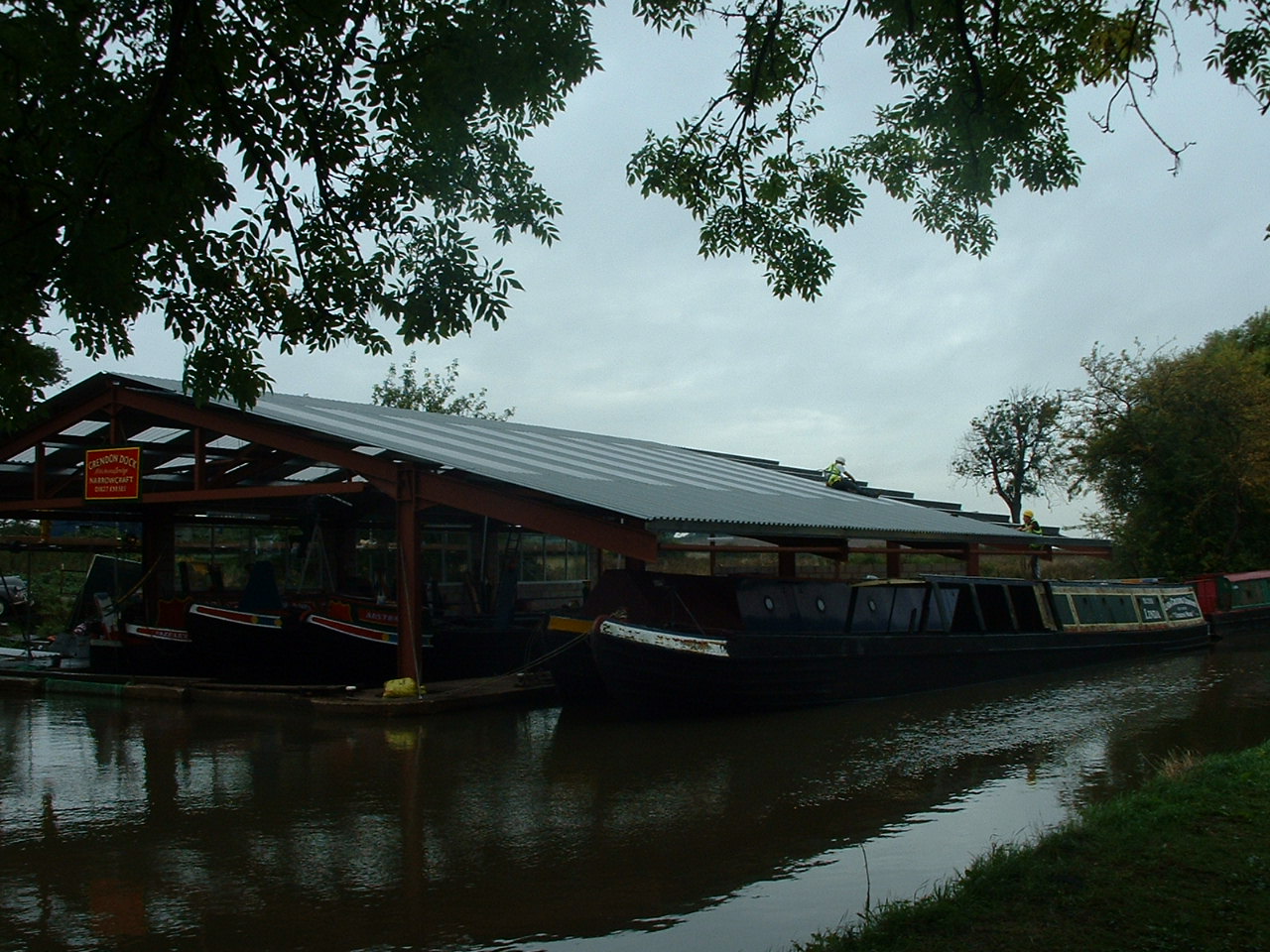

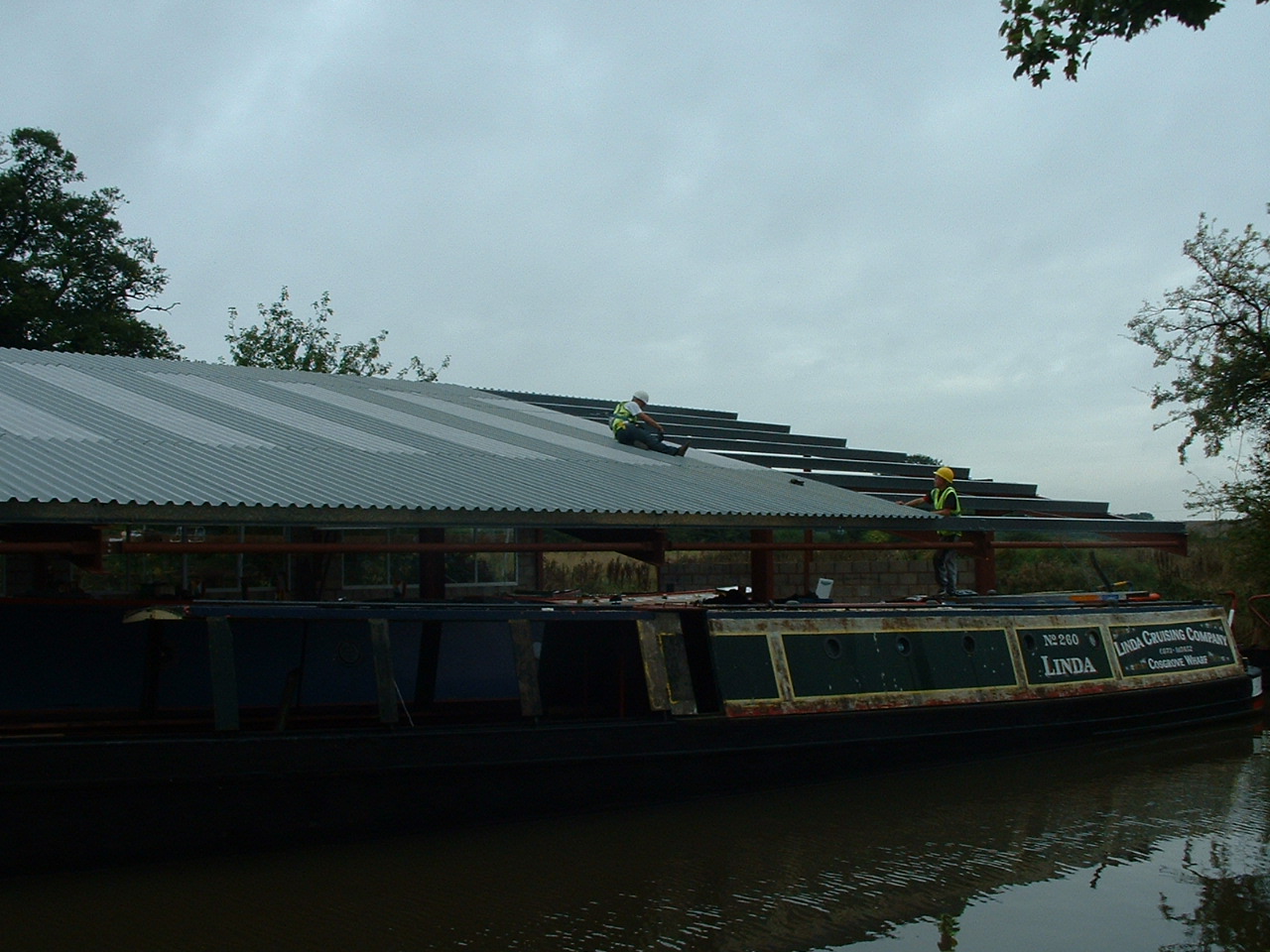

Dordon Dry Dock (Staffordshire)

ACSAP clad this large single span, portal roofed dry dock building with plastisol coated profile steel sheeting.

dordon2
dordon6

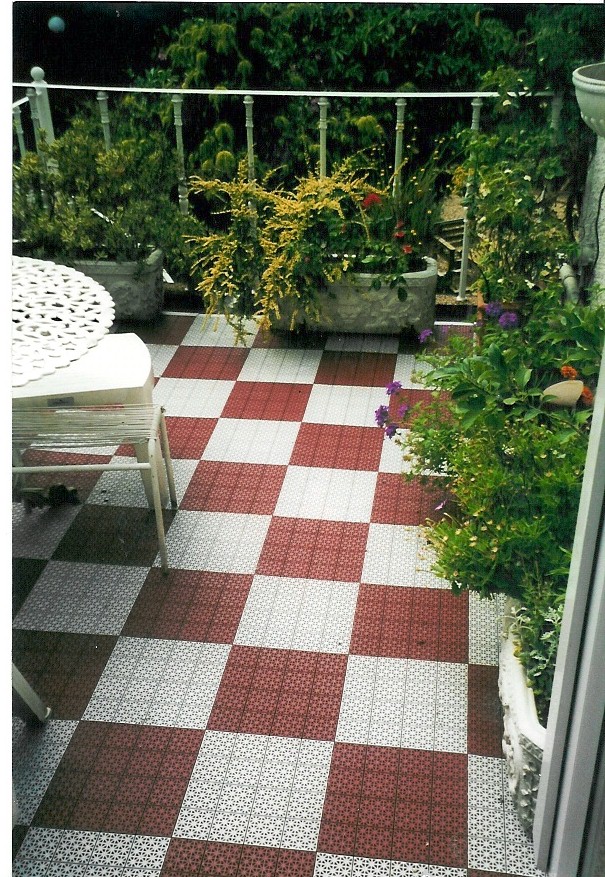

Roof Garden (Shepherds Bush, London)

During this project ACSAP installed a new deck and covered with a built-up felt roofing system which included the installation of Promenade tiles for the roof patio (as in the photograph). The project also utilised an epoxy-resin sealing system to the balustrade posts
small roof garden

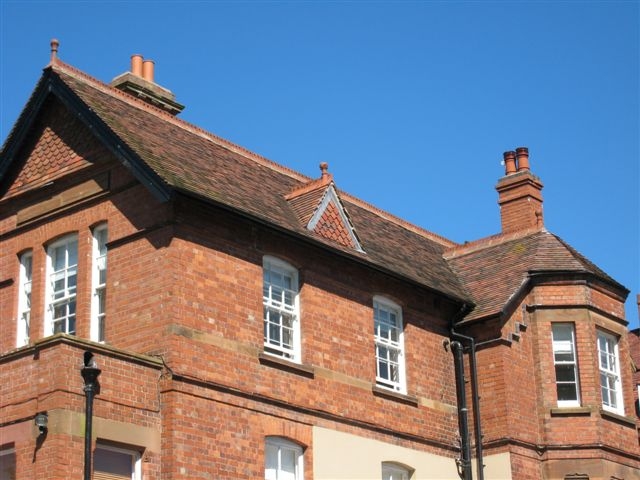

Pennington House (Kenilworth)

This large scale development included a strip and retile, new build elements in reclaimed plain tiles, and the installation of built-up felt roofing and lead-work.
pennington tiling
